PS-5 "Farmer" Seed Treaters
PS-5FB

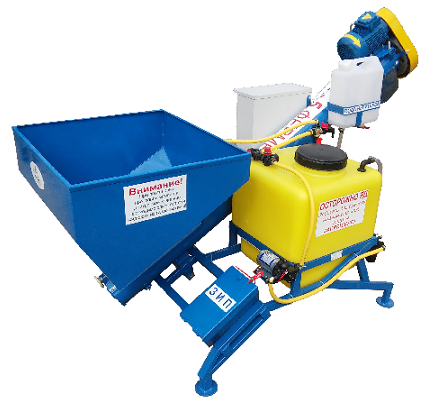

PS-5FS
PS-5F ("Farmer") series seed treaters are automatic machines with electric drives for the main mechanisms.
Technical Specifications
| Parameter | Unit | Value |
|---|---|---|
| Type | — | chamber type |
| Drive | — | electric (380 V) |
| Output per hour of main operating time (for wheat) | t/h | 5 |
| Treatment completeness | % | 100 ± 20 |
| Mechanical damage to seeds, max | % | 0,5 |
| Increase in seed moisture, max | % | 1,0 |
| Tank capacity, min | l | 120 |
| Grain receiving hopper volume | m3 | 0,26 |
| Pump type | — | diaphragm |
| Pump capacity, max | l/min | 11,3 |
| Working liquid pressure, max | MPa | 0,3 |
| Discharge height | m | 2,0 / 0,8* |
| Power consumption, max | kW | 1,5 |
| Specific power consumption, max | kW/t | 0,42 |
| Overall dimensions: length width height |
mm | 2300 1250 1500 |
| Weight, max | kg | 210 |
* For PS-5F and PS-5FS.
Modifications:
PS-5FB - with a folding auger extended to 4070 mm for discharge into "Big Bags";
PS-5FS - stationary version;
PS-5FBS - stationary version with an extended auger for discharge into "Big Bags".
Features of design:
- 120 l tank capacity;
- dual-disc nozzle;
- versions with an extended auger have an intermediate support, which prevents the auger from striking the housing and reduces vibration;
- service-water tank for washing the operator’s hands;
- all units are mounted on a frame set on wheels with pneumatic tires, allowing the machine to be easily moved by hand;
- wheel locking is ensured by engaging the brake clutch and the half-coupling of the front right wheel;
- control is performed by a highly reliable programmable sensor installed in the grain loading hopper;
- designed for treating seeds of wheat, barley, oats, rye, flax, peas, rapeseed, sunflower, and soybeans.
Process diagram of the PS-5 "Farmer" seed treater:
1 - hopper; 2 - treatment chamber; 3 - shaker blades; 4 - nozzle; 5 - adjusting handwheel; 6 - adjusting screw; 7 - grain metering gate; 8 - metering window.
Advantages:
- patented liquid spray system, including for highly concentrated viscous suspensions;
- 24 V electric diaphragm pump;
- highly reliable programmable capacitive sensor with no moving parts in its design;
- built-in rinsing system;
- fully drawn spiral (Italy) with an angle that prevents jamming and seed damage;
- easy setup and convenient access to components during maintenance and repair.
More detailed information about the design, operating principle, and settings of all seed treater models is available in the PS-5 "Farmer" is available in the Operating Manuals .
