Pumps electric
33Y series
51Y series
220ВMicro-diaphragm electric pumps commercial models "IndFlo" (China) and "SeaFlo" (China) simple in installation and in maintenance, are self-priming and can operate dry without damage. These are positive-displacement, flow-through pumps. Valves and diaphragms are made of chemically resistant materials. The 33Y series pumps are three-chamber, while the 51Y series pumps are five-chamber.
Features:
- voltage - 12, 24 or 220 V;
- height suction - 1,8 m;
- operating temperature - to 60° C;
- material valves - Viton / EPDM;
- material membranes - Santoprene;
- diameter outlets - 1/2";
- the waterproof grade - IP54;
- with inline fuse".
| Model | Voltage, V | Maks. consumption, l/min. |
Maks. current, And | Maks. pressure, bar |
Application |
| DP33Y-03504512 | 12 | 13.2 | 9.0 | 3.1 | SDK |
| DP33Y-03504524 | 24 | 13.2 | 5.0 | 3.1 | PS-10, PS-5M, PS-5 |
| DP51Y-05006012 | 12 | 18.9 | 17.0 | 4.2 | PS-20 |
| DP51Y-05006024 | 24 | 18.9 | 8.0 | 4.2 | |
| SFDPA2-030-050-33 | 220 | 11.3 | 3.1 | 1.0 | SDK-7,3 |
Accessories and spare parts:

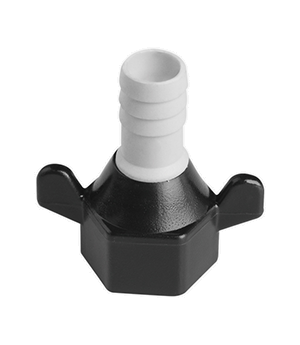

Fiting 51F001

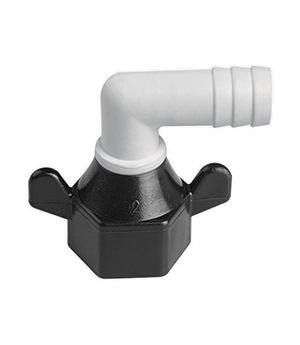

Fiting 51F003

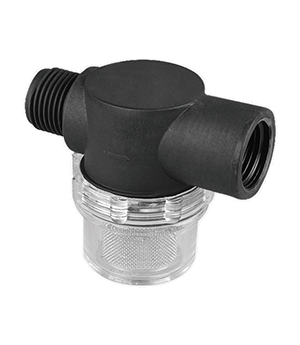

Filter 51S01
Valve 33Y
Valve 51Y
